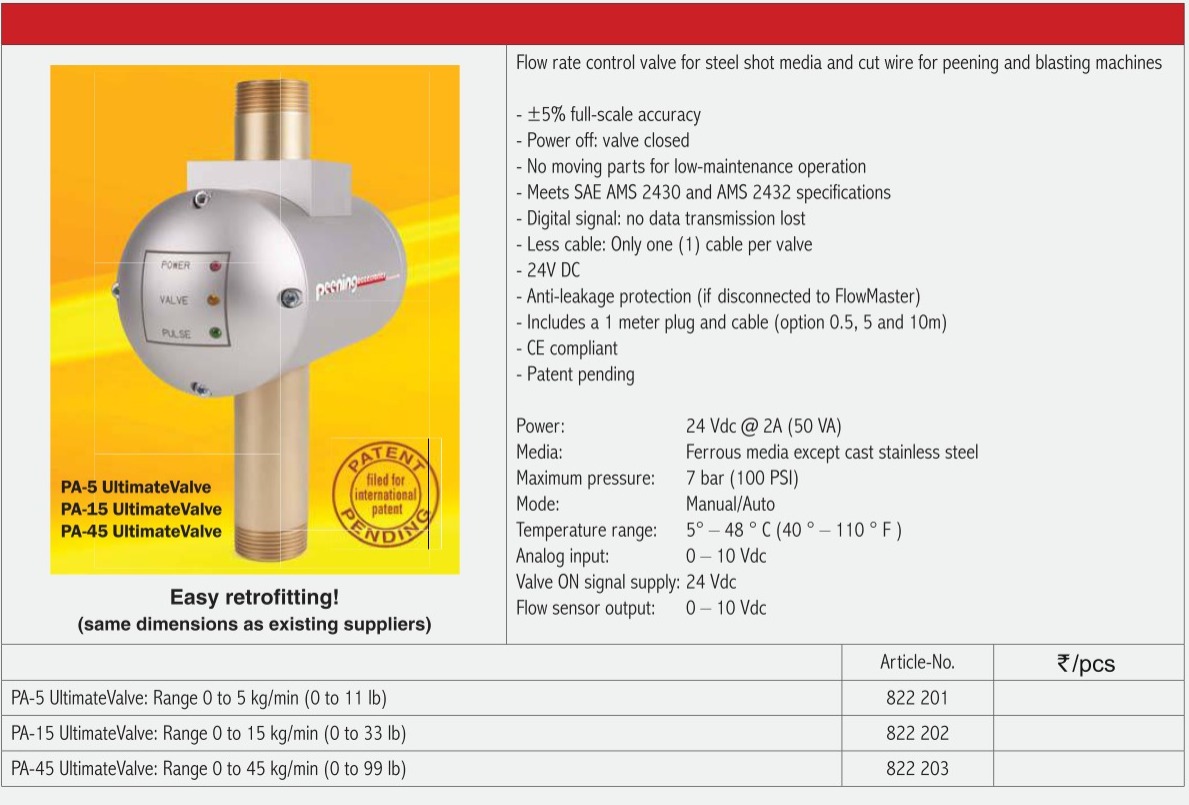

PA Ultimate Valves – 3 VERSION

Flow rate control valve for steel shot media and cut wire for peening and blasting machines

_+ 5% full-scale accuracy
Power off: valve closed
No moving parts for low-maintenance operation
Meets SAE AMS 2430 and AMS2432 specifications
Digital signal: no data transmission lost
Less cable: Only one (1) cable per valve
24V DC
Anti-leakage protection (if disconnected to FlowMaster)
Includes a 1 meter plug and cable (option 0.5, 5 and 10m)
CE compliant
Patent pending

Power: 24 Vdc @ 2A (50 VA)

Media: Ferrous media except cast stainless steel

Maximum pressure: 7 bar (100 PSI)

Mode: Manual/Auto

Temperature range: 5^0 – 48^0 (40^0 -110^0F)

Analog input: 0-10 Vdc

	Article- no
PA-5 UltimateValve Range 0 to 5 kg/min (0to11Ib)	822 201
PA-15 UltimateValve Range 0 to 15 kg/min (0 to 33Ib)	822 202
PA-45 UltimateValve Range 0 to 45 kg/min (0 to 9 Ib)	822 203

Valve ON signal supply: 24Vdc

Flow sensor output : 0-10 Vdc
