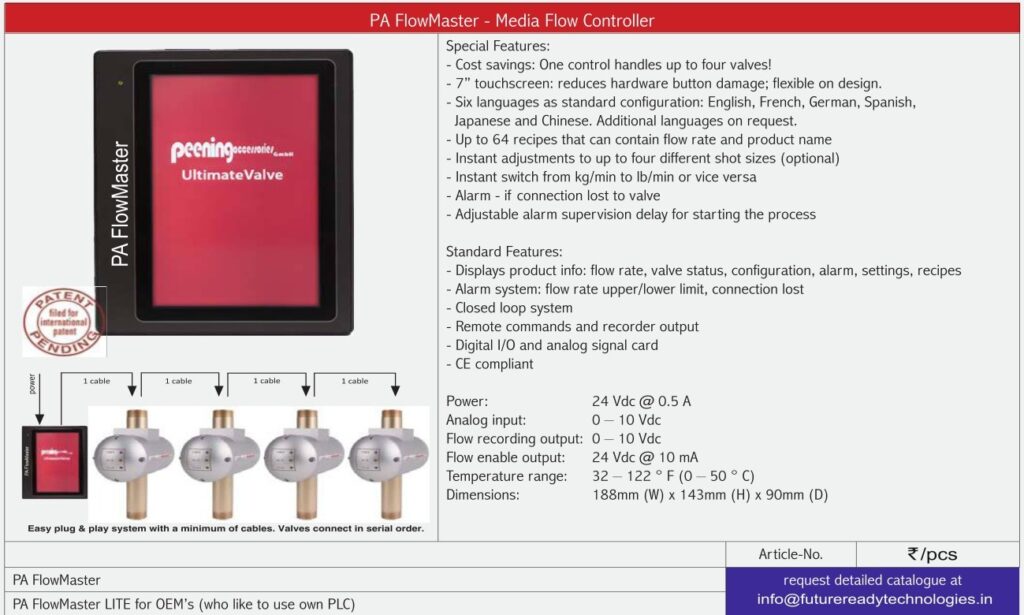

PA Flow Master – Media Flow Controller


Special Features:

  • Cost savings: One control handles up to four valves!

  • 7” touchscreen: reduces hardware button damage; flexible on design.

  • Six languages as standard configuration: English, French, German, Spanish, Japanese and Chinese. Additional languages on request.

  • Up to 64 recipes that can contain flow rate and product name.

  • Instant adjustments to up to four different shot sizes (optional)

  • Instant switch from kg/min to Ib/min or vice versa

  • Alarm- if connection lost to valve

  • Adjustable alarm supervision delay for starting the process


Standard Features:

  • Displays product info: flow rate, valve status, configuration, alarm settings, recipes

  • Alarm system: flow rate upper/ lower limit, connection lost

  • Closed loop system

  • Remote commands and recorder output

  • Digital I/O and analog signal card

  • CE compliant


Power:                              24 Vdc @ 0.5A

Analog input:                    0-10 Vdc

Flow recording output:    0-10 Vdc

Flow enable output:         24 Vdc @ 10ma

Temperature range:          32-122^0 f(0-50^0C)

Dimensions:                         188mm (W) x                                        143mm(h) x 90mm (D)
