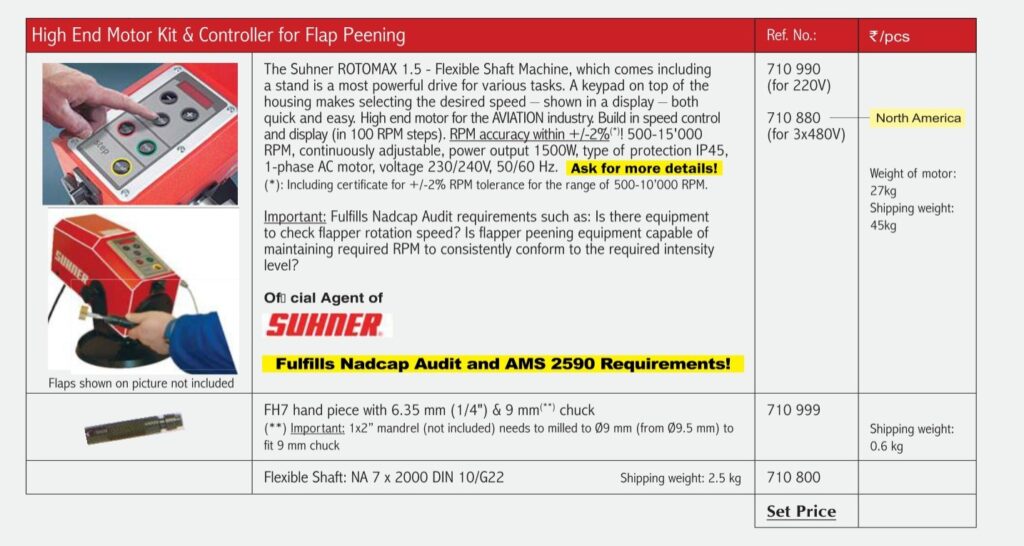

HIGH END MOTOR KIT & CONTROLLER FOR FLAP PEENING

REF.NO.

The Suhner ROTOMAX 1.5 – Flexible Shaft Machine, which comes including a stand is a most powerful drive for various tasks. A keypad on top of the housing makes selecting the desired speed – shown in a display – both quick and easy. High end motor for the AVIATION industry.Build in speed control and display (in 100 RPM steps). RPM accuracy within +\-2%(*)!500-15’000 RPM, continuously adjustable, power output 1500W, type of protection IP45, 1-phase AC motor, voltage 230/240V, 50/60 Hz. Ask for details! (*):including certificate for +\-2% RPM tolerance for the range of 500-10,000 RPM.

Important:Fulfills Nadcap Audit requirements such as: Is there equipment to check flapper rotation speed? Is flapper peening equipment capable of maintaining required RPM to consistently conform to the required intensity level?

710 990

( for 220V)

710 880

( for 3x 480V)

FH7 hand piece with 6.35mm ( ¼ ) & 9mm(*) chuck

(**) Important:1×2’ mandrel ( not included) needs to be milled to 09mm (from 0.95mm) to fit 9mm chuck

710 999

Flexible Shaft NA 7×2000 DIN 10/G22

710 800

OPTION: Foot switch for ROTOMAX motor with ON/OFF FUNCTION

710 700

OPTION: Stand on Wheels

710 600
